11 Small Bathroom Floor Plan Examples to Maximize Your Space

The small bathroom is a classic design challenge, often feeling more like a closet you stumbled into than a functional space. A brilliant design isn’t about the square footage you have, but how you use it. This is true for all small house design ideas.

A smart small bathroom floor plan can transform your cramped quarters into a surprisingly spacious and stylish sanctuary. This is where exploring latest design ideas and understanding how to draw floor plans effectively becomes your most powerful tool.

Ready to ditch the clutter and unlock your bathroom’s true potential? Let’s explore some small bathroom plans that punch way above their weight class.

What Are the Most Common Small Bathroom Dimensions?

Understanding standard dimensions helps you visualize the constraints and possibilities of a small bathroom floor plan. Here are the typical footprints you will encounter when you read a floor plan.

• The Standard ‘Full Bath’ – 5′ x 8′ (40 sq ft): This classic layout is the most common. It comfortably fits a standard 60-inch tub or shower, a single vanity, and a toilet all along one wall, making plumbing simple.
• The Compact Full Bath – 5′ x 7′ (35 sq ft): This slightly tighter version requires careful planning. It can still fit all full bath fixtures, but you might opt for a smaller vanity or a shower-only design to maintain clear floor space.
• The Versatile Square – 6′ x 6′ (36 sq ft): This shape offers more flexibility. You can place fixtures on two or even three different walls, which can help the room feel wider and less like a narrow corridor.

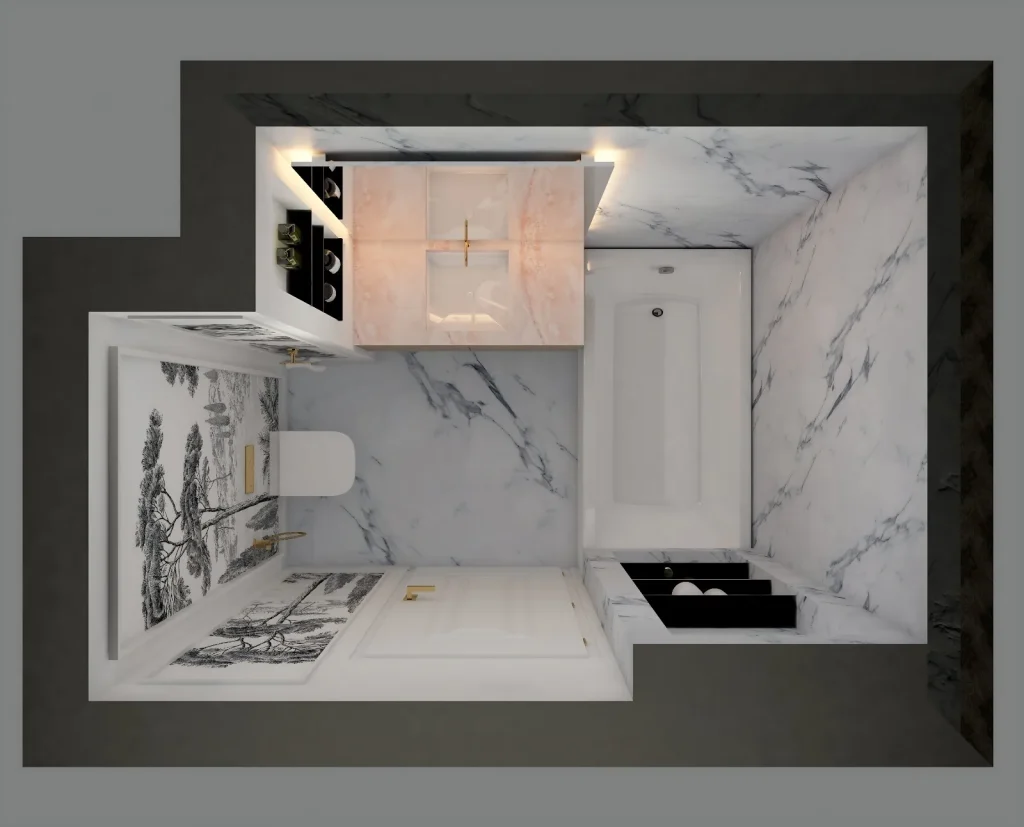

11 Small Bathroom Floor Plan Examples

Here are the 11 most popular small bathroom floor plan ideas to inspire your next project:

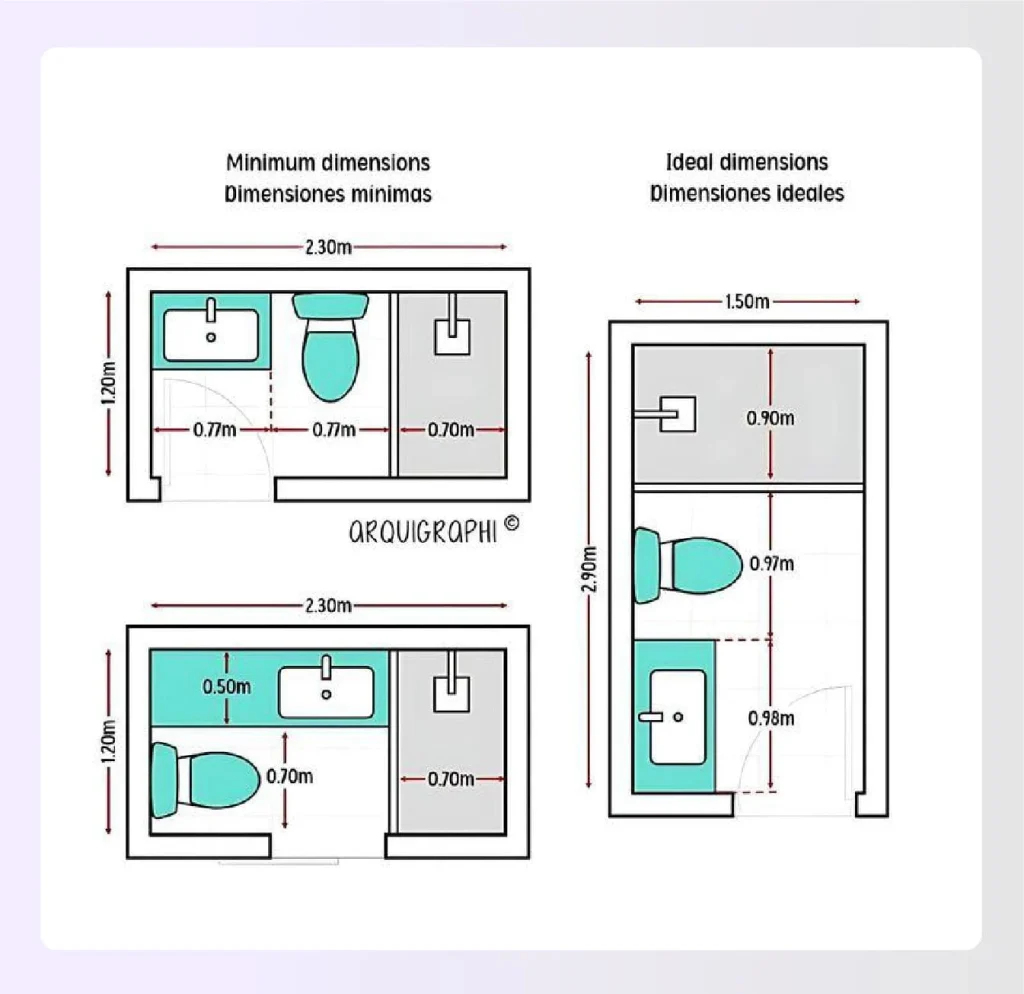

1. 3/4 Bathroom Layout (Shower Only)

This highly efficient small bathroom floor plan ditches the tub for a spacious walk-in shower, visually opening up the room. Fixtures are often aligned on one or two walls for simple plumbing. This is perfect for guest baths or en-suites where a tub isn’t needed. You can use Foyr Neo’s AI Magik Bar to test different shower tile textures instantly.

• Replaces the bathtub with a spacious, often curb-less, walk-in shower.
• Maximizes the available open floor space, making the room feel larger.
• Works perfectly in a standard 5′ x 7′ or 5′ x 8′ bathroom footprint.

Best for: This plan is ideal for guest bathrooms, en-suites, or homeowners who prefer a spacious shower to a rarely used bathtub.

A small bathroom layout plan with a walk-in shower, Credit: Pinterest, Vivki Greenwood

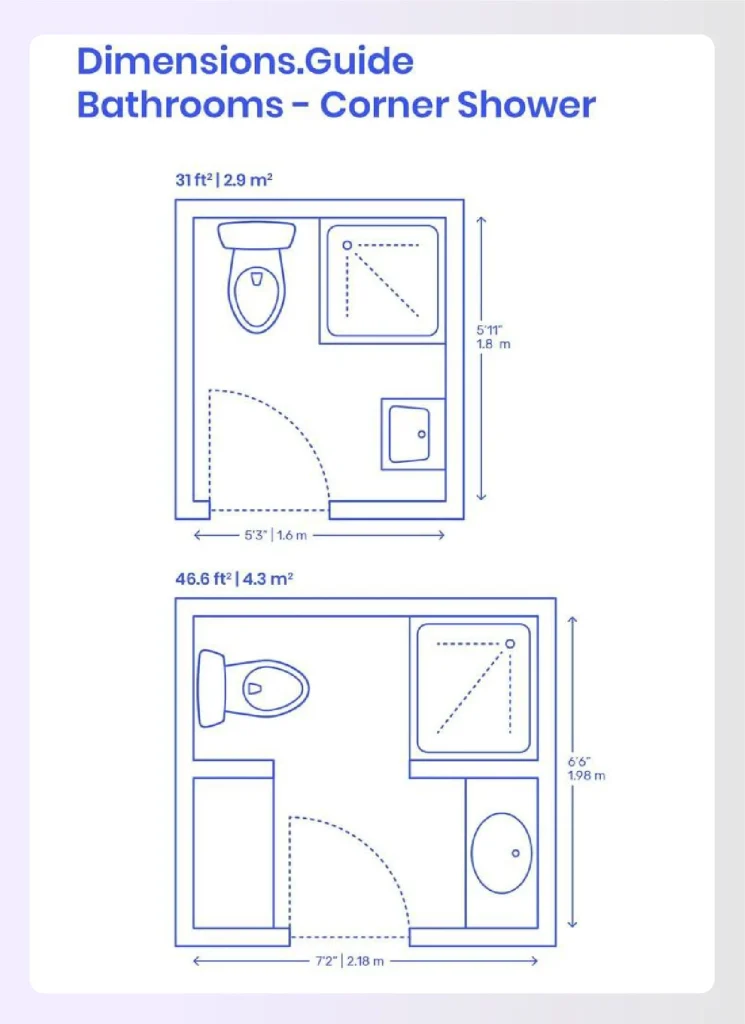

2. Layout with a Corner Shower

A corner shower is a classic space-saver in a very small bathroom layout. By tucking the shower into a corner, you free up central floor space and wall space, making the room feel more open. This layout often uses a neo-angle or rounded shower enclosure. You can find dozens of corner shower models in the Foyr Neo 3D asset library to drag and drop into your plan.

• Uses a neo-angle or quadrant shower enclosure to fit neatly into a corner.
• Frees up valuable central floor space, making the small room feel more open.
• Allows for a larger vanity or extra storage space on the remaining walls.

Best for: This design is best for compact square bathrooms or for efficiently converting a small powder room into a functional full bath.

A compact bathroom layout using a corner shower, Credit: Pinterest, Dimensions.com

3. Galley-Style Bathroom Layout

This bathroom layout for small bathroom spaces places fixtures on two parallel walls with a central walkway. It’s common in ‘Jack and Jill’ setups or compact spaces. You can use Foyr Neo’s Ruler Tool to ensure you maintain proper code-compliant clearance between a vanity on one side and a toilet on the other.

• Positions all bathroom fixtures along two opposing walls with a central corridor.
• Creates a clear and functional pathway through the middle of the room.
• Efficiently uses long and narrow footprints often found in apartments or en-suites.

Best for: This layout is best for shared “Jack and Jill” bathrooms or any long, narrow en-suite where fixtures must go on parallel walls.

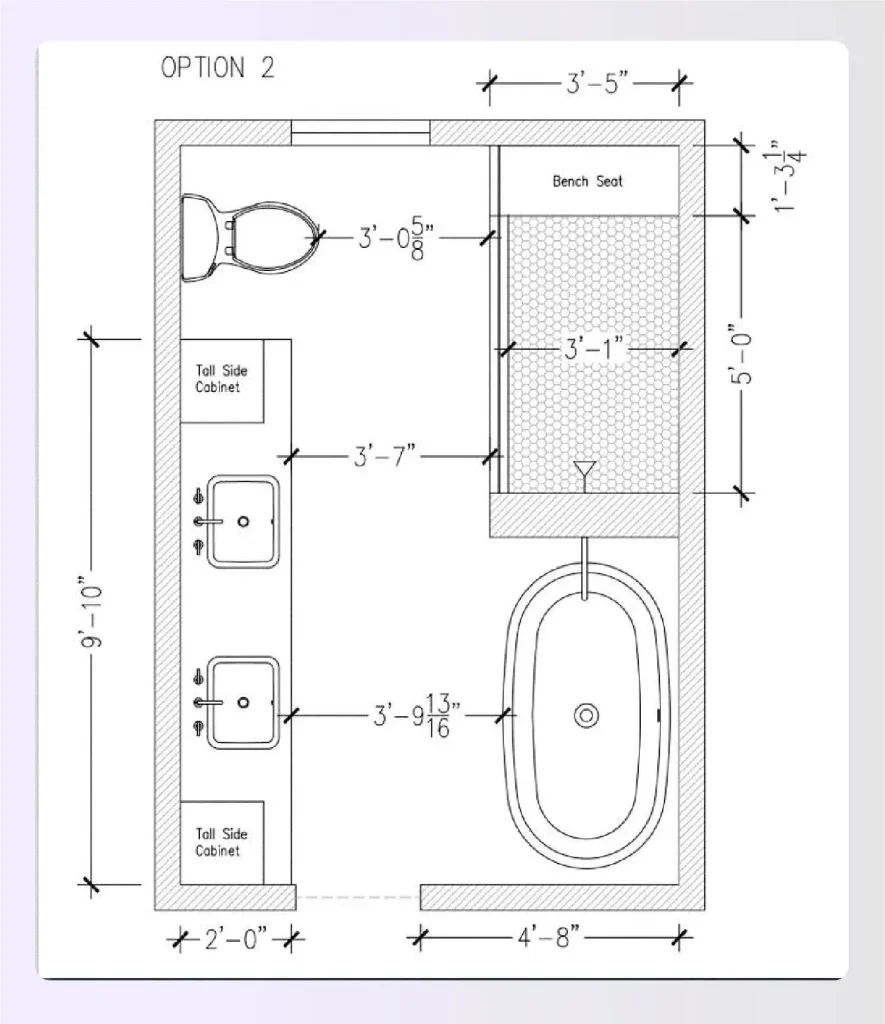

A functional bathroom layout for small bathroom space, Credit: Pinterest

4. Powder Room / Half-Bath Layout

The classic half-bath contains only a toilet and a sink, making it the smallest functional small bathroom floor plan. It’s all about essentials, often tucked into limited spaces like nooks or closets.

• Includes only the two essential fixtures: a toilet and a sink.
• Requires minimal square footage, often fitting in closets or under stairs.
• Often uses a pocket door or pedestal sink to save valuable floor space.

Best for: This plan is best for convenient main-floor guest use, fitting perfectly into small nooks or in creative under-stair conversions.

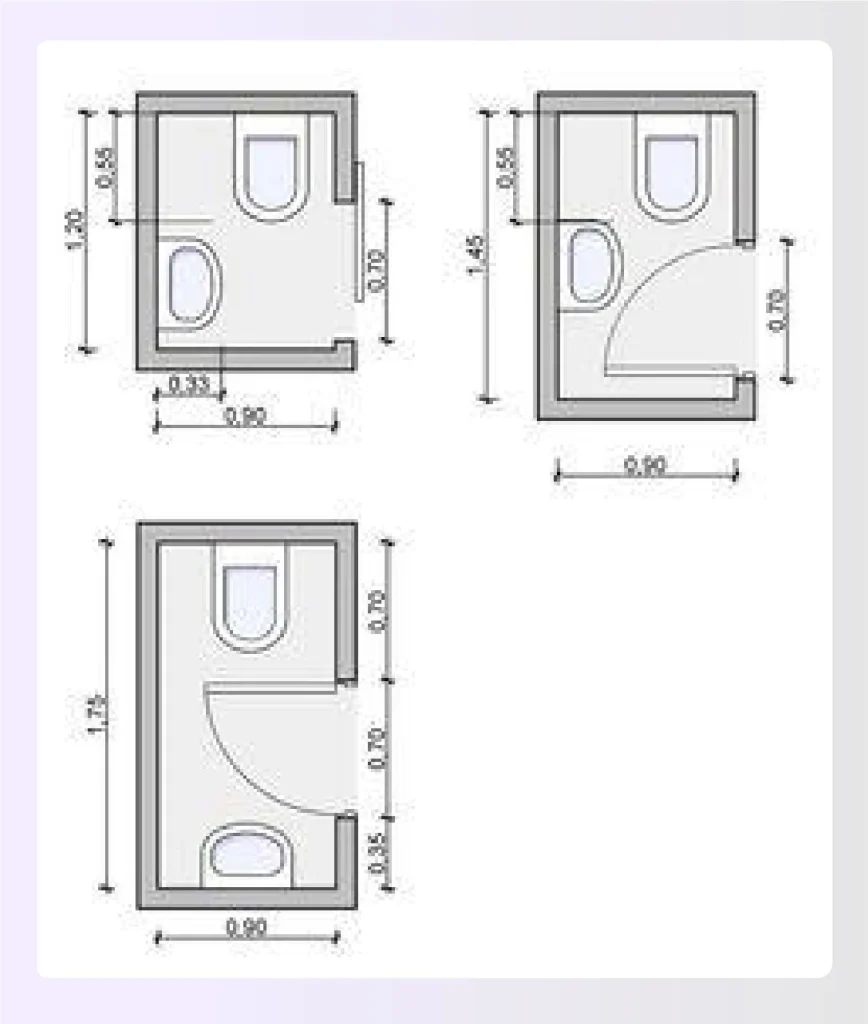

This small bathroom plan is perfect for a half-bath, Very small bathroom layout for a powder room, Credit: Pinterest

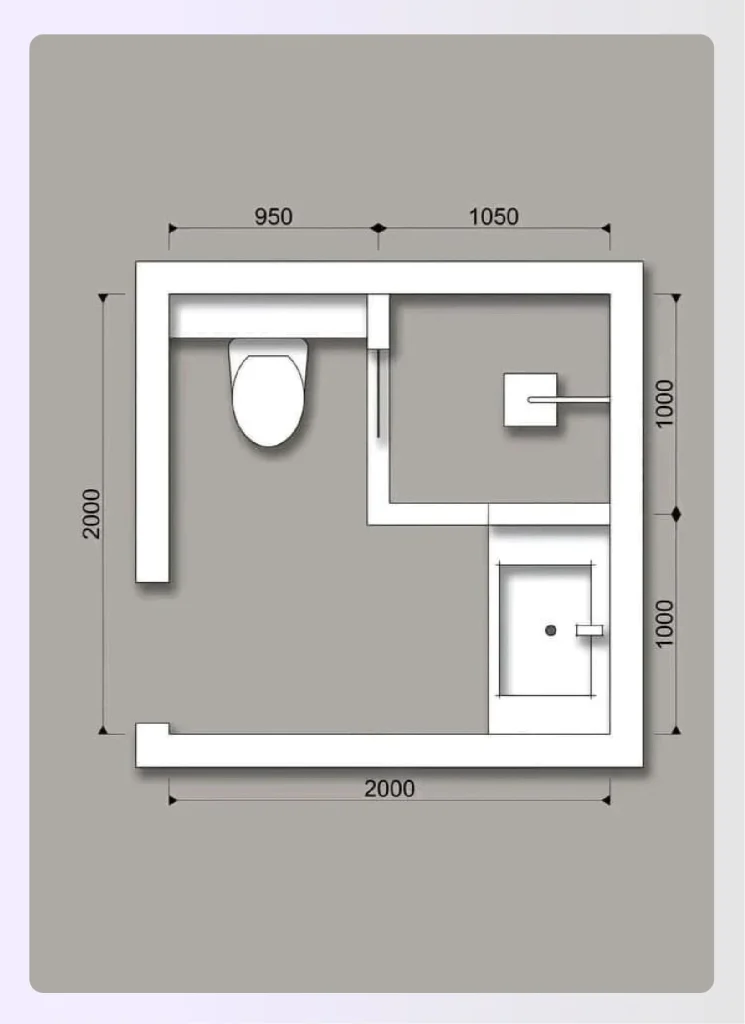

5. Compartmentalized Bathroom Layout

This smart small bathroom layout plan places the toilet (and sometimes the shower) in a separate room with its own door. This brilliant move allows multiple people to use the bathroom simultaneously in privacy. You can model this in Foyr Neo by adding interior walls and testing door swings with automated processes to ensure full clearance.

• Places the toilet, and sometimes the shower, in a separate “water closet”.
• Allows the main vanity and sink area to remain open for simultaneous use.
• Significantly increases the privacy and functionality of a shared family bathroom.

Best for: This layout is best for busy, shared family bathrooms or master en-suites where one person can use the sink while another showers.

A smart layout for high-traffic small bathrooms, Credit: Pinterest

6. Bathroom and Laundry Combination Layout

This practical small bathroom floor plan combines two functions in one, saving space elsewhere in the home. It typically involves a stackable washer and dryer tucked into a closet or integrated into the cabinetry. Using Foyr Neo’s intuitive floor plan creator, you can easily add a closet and drag-and-drop appliance models to find the perfect, snug fit.

• Includes a stackable washer and dryer, often hidden within a dedicated closet.
• Consolidates two high-utility rooms into a single, efficient footprint.
• Requires careful planning for plumbing, electrical, and dryer vent access.

Best for: This is best for apartments or small homes needing to save horizontal space, or for a multi-functional guest bath with added laundry convenience.

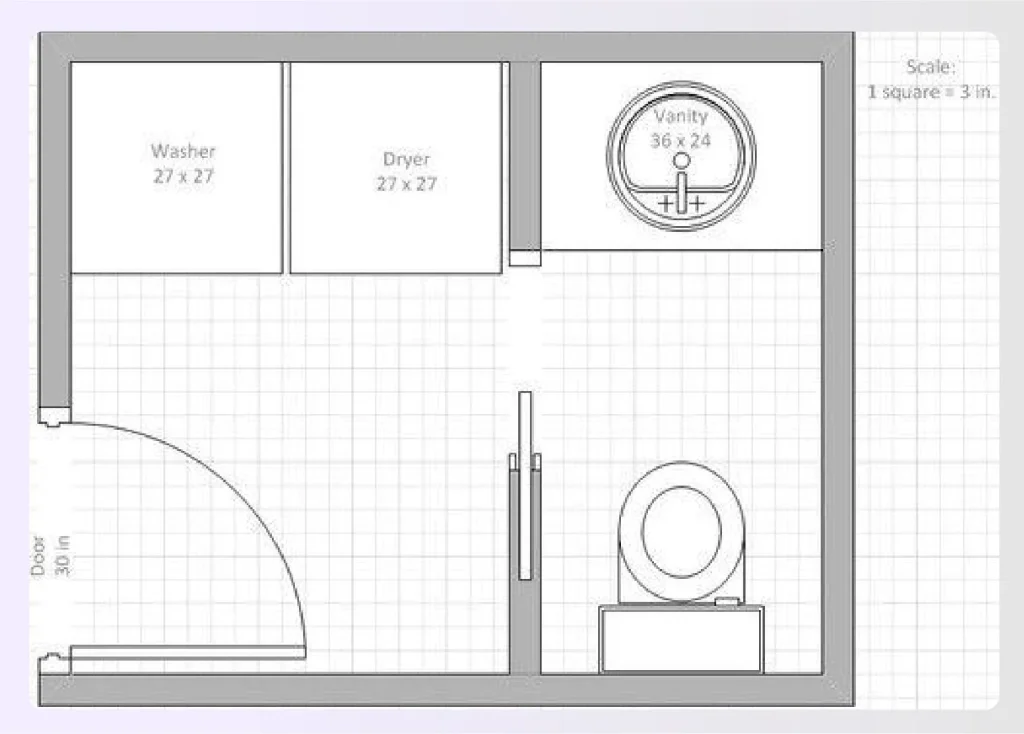

A small bathroom floor plan with laundry combination, Credit: Pinterest

7. Under-Stairs Bathroom Layout

This is one of the tightest bathroom layouts, cleverly converting unused space into a functional powder room. The main challenge is the sloped ceiling, which dictates fixture placement.

• Fits entirely within the awkward, unused small spaces found under a staircase.
• Features a heavily sloped ceiling that dictates fixture placement and headroom.
• Typically functions as a powder room with just a small toilet and sink.

Best for: This layout is best for creatively adding a convenient half-bath for guests on the main floor by utilizing otherwise wasted tiny space.

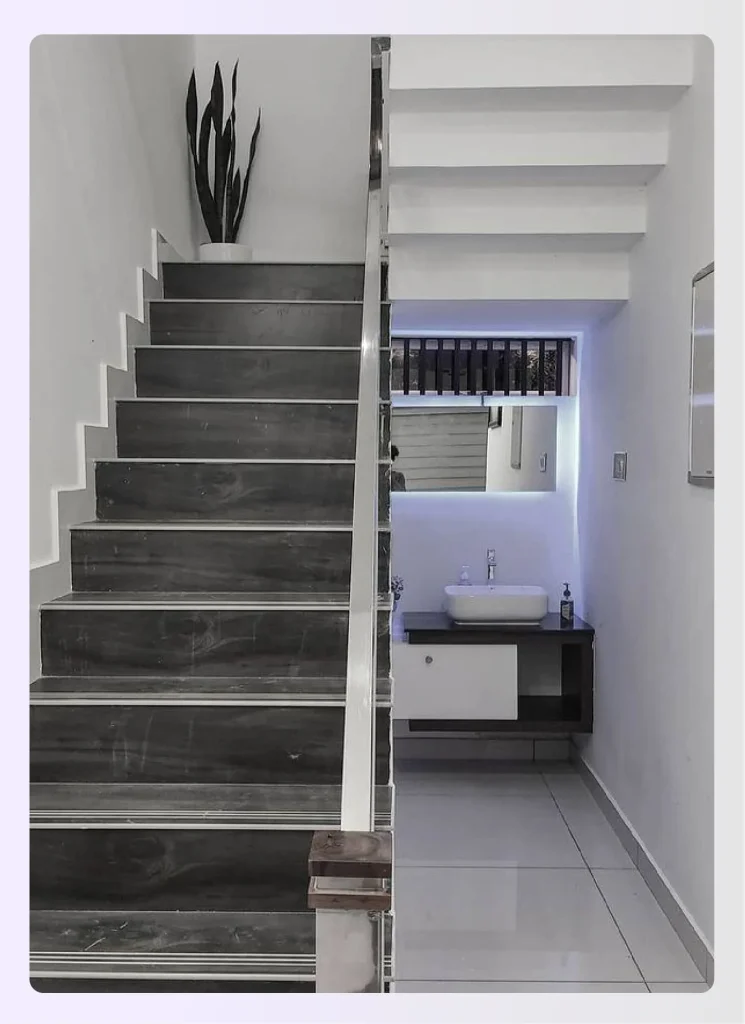

A creative small bath layout under the stairs, Credit: Pinterest

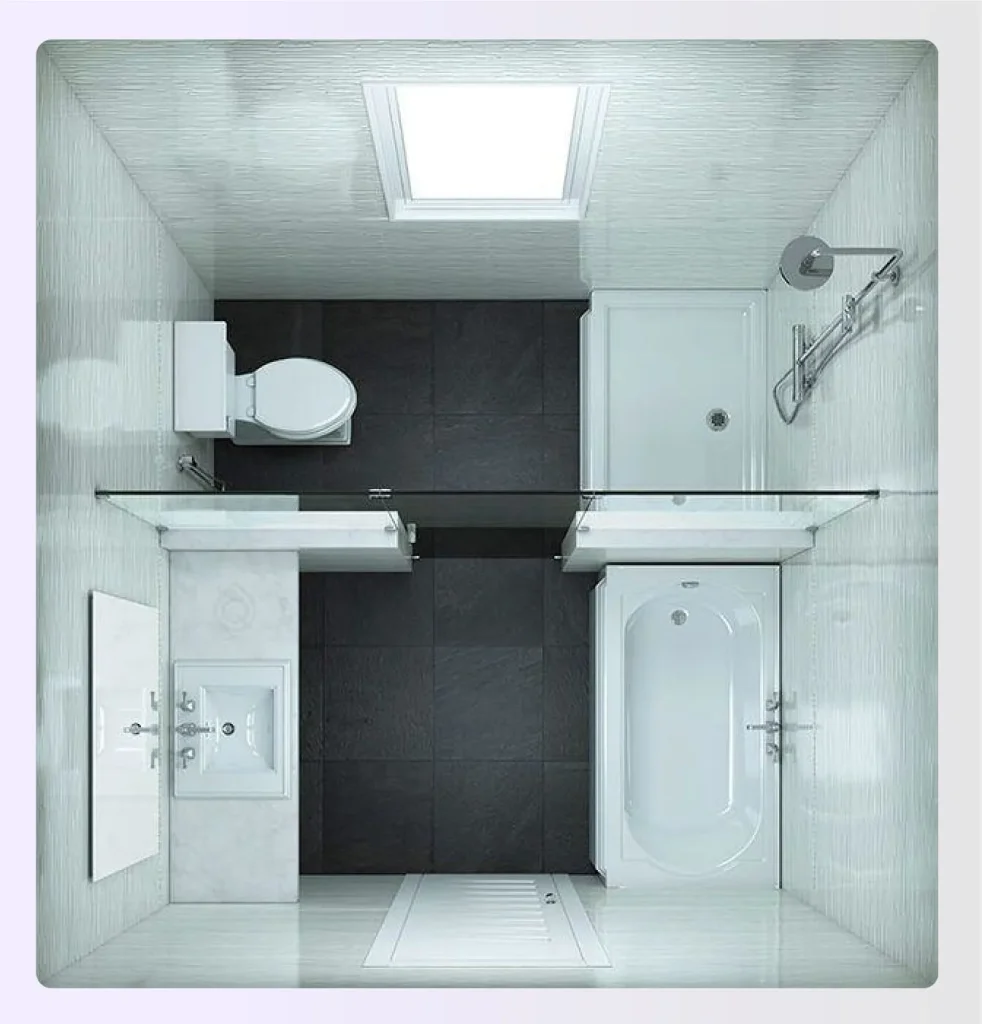

8. Wet Room Layout

A wet room is a bold small bathroom floor plan where the entire room is waterproofed, allowing the shower to be open to the space. This eliminates the need for a separate enclosure, creating a seamless, open feel. It’s a fantastic way to make a very small bathroom layout feel expansive.

• Designs the entire room as a waterproofed shower enclosure, removing all barriers.
• Requires complete floor-to-ceiling waterproofing and a central floor drain.
• Creates a seamless, minimalist, and highly accessible (curb-free) final look.

Best for: This is best for achieving a minimalist aesthetic, creating a barrier-free shower for accessibility, and making the tiniest spaces feel open.

This small bathroom floor plan is a barrier-free wet room, Credit: Pinterest

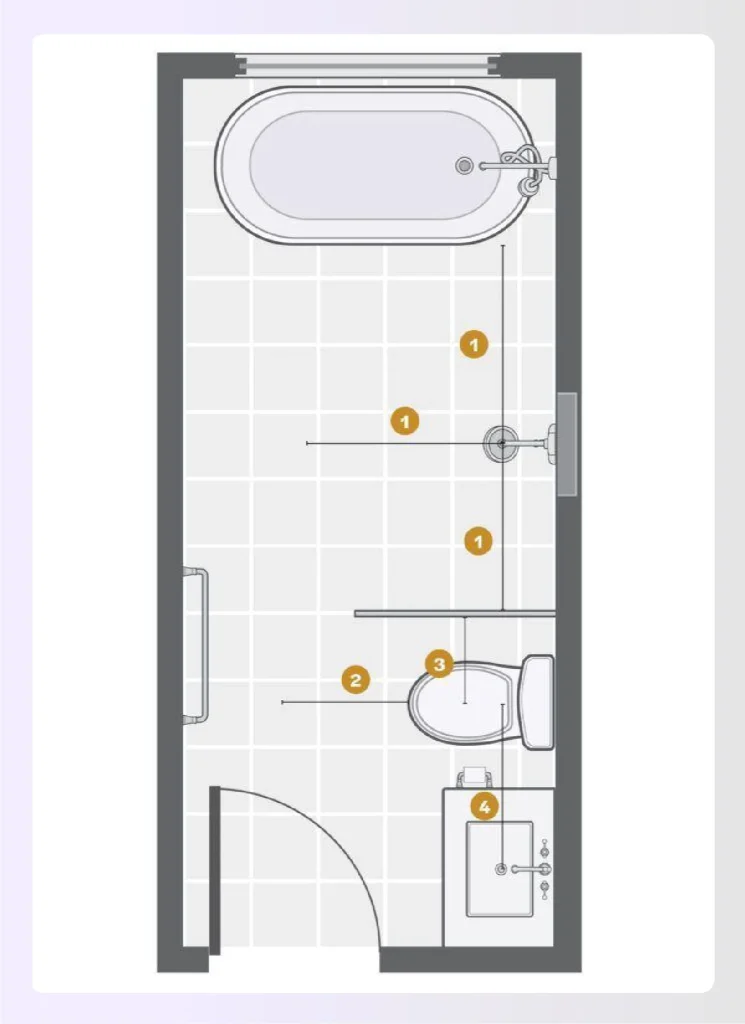

9. Layout with a Freestanding Tub

A freestanding tub in a small bathroom floor plan? Yes, it’s possible and makes a stunning focal point. This design makes the tub the star, often placing it against a feature wall or under a window. You can use Foyr Neo’s AI Magik Bar to instantly swap different tub styles and textures to see what works in your bathroom layout for small bathroom space.

• Features the freestanding tub as the room’s primary sculptural focal point.
• Requires clear space on at least three sides for visual impact and cleaning.
• Often uses stylish floor-mounted plumbing or a wall-mounted tub filler.

Best for: This plan is best for creating a spa-like, luxurious feel in a bathroom that is on the larger end of the “small” category.

A luxurious layout with a feature tub, Credit: Pinterest

10. ADA-Compliant Bathroom Layout

This small bathroom floor plan prioritizes safety and accessibility above all else. It requires a larger footprint to accommodate a 5-foot turning radius for a wheelchair, plus grab bars and accessible fixtures. You can use Foyr Neo’s Ruler Tool to verify all clearances meet precise code requirements for accessibility.

• Requires a 60-inch (5-foot) clear turning circle for wheelchair maneuverability.
• Includes grab bars and accessible-height fixtures for toilets and sinks.
• Often features a barrier-free, roll-in shower instead of a traditional tub.

Best for: This layout is best for ensuring complete safety and maneuverability for any users with mobility challenges, meeting all accessibility code requirements.

11. Jack and Jill Bathroom Layout

This layout is positioned between two bedrooms, with doors connecting to each, making it a classic small bathroom floor plan for kids. It often features a double vanity and a separate compartment for the toilet and shower.

• Acts as a shared space, accessible from two separate bedrooms via private doors.
• Often features a double vanity to reduce morning bottlenecks for siblings.
• Frequently places the toilet and tub in a separate room for added privacy.

Best for: This layout is best for providing a shared, space-saving bathroom for two kids’ bedrooms or for creating a convenient, connected guest suite.

Seeing the process in action can be a huge help. Check out this video to see how you can design a complete small bathroom floor plan from scratch in Foyr Neo.

Standard Fixture Dimensions

Knowing standard fixture sizes is critical. It helps you create a small bathroom floor plan that is accurate, functional, and uses the right floor plan symbols.

Bathtubs

• Standard Alcove Tub/Shower Combo: The industry standard is 60 inches long (5 feet) x 30-32 inches wide. This alcove style is the most common and versatile choice for family bathrooms.
• Smaller Alcove Tubs: If you have a slightly smaller space, you can find tubs that are 54 inches long. This option saves crucial space in a compact bathroom.

Showers

• Code Minimum: Most building codes require a shower to be at least 30″ x 30″ (900 square inches). This is the absolute smallest size legally allowed for a shower stall.
• Comfortable Minimum: A 36″ x 36″ shower is a much more comfortable and popular starting point. This size provides adequate elbow room without feeling cramped.
• Space-Saving Corner Showers: These often come in a neo-angle design and typically measure 36″ x 36″ or 38″ x 38″. They are perfect for square-shaped bathrooms.

Toilets

• Required Width: A minimum of 30 inches of total clear space is required for a toilet, measuring 15 inches from the centerline to any side obstruction like a wall.
• Required Front Clearance: At least 21 inches of clear space in front of the toilet bowl is code. For comfort, 24 inches is much better and feels less restrictive.

Vanities & Sinks

• Standard Depth: A standard bathroom vanity is 21 inches deep from front to back. This provides ample counter space and accommodates most standard drop-in or undermount sinks.
• Space-Saver ‘Narrow’ Depth: For tight spaces, you can find vanities that are only 18 inches deep. This slim profile is essential for narrow bathrooms and powder rooms.
• Common Widths: Single-sink vanities typically come in widths of 24″, 30″, or 36″. This variety allows you to find the perfect fit for your specific wall space.

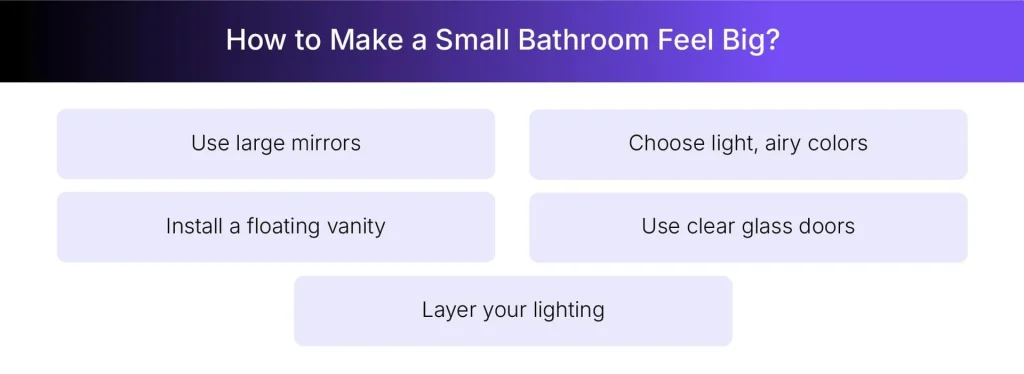

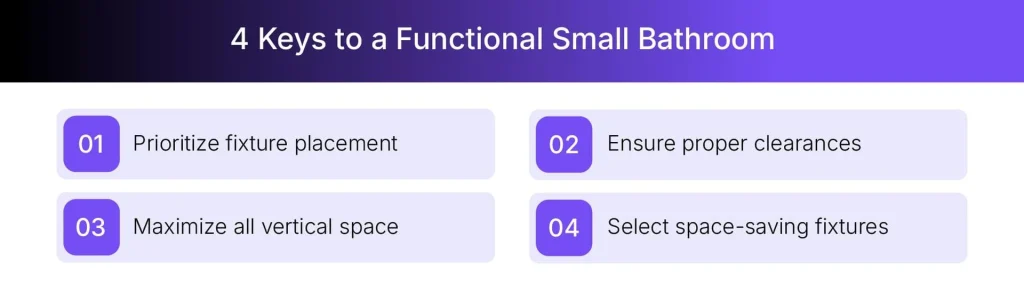

How Can You Make a Small Bathroom Feel Bigger?

A great small bathroom layout is the foundation. Now, use these design tricks to expand the space visually.

• Go big with mirrors to reflect light and create an illusion of depth.
• Use light colors on walls and floors, applying color theory to make the room feel open and airy.
• Float your vanity off the floor to create an unbroken line of sight.
• Use see-through glass shower doors instead of a curtain to open the space.
• Let there be light by layering different types of lighting.

Mastering your lighting setup is crucial. Watch this quick tutorial on how to use Foyr Neo’s smart lighting controls to get the perfect ambiance in your renders.

Bring Your Small Bathroom Plan to Life with Foyr

Now that you have these bathroom layouts for small bathrooms, it’s time to visualize your own. Foyr Neo is a powerful, AI-enhanced software built for designers to create and render stunning interiors.

• Create intuitive floor plans in minutes with simple drag-and-drop functionality.
• Instantly visualize your space with a single-click 2D-to-3D conversion.
• Furnish your design from a library of over 60,000 pre-built 3D models.
• Generate stunning, photorealistic 12K quality renders in just minutes.
• Access your projects from anywhere on the cloud, even on an iPad.

Foyr Neo is one of the best interior design software options because it’s fast and easy. You get professional results without the steep learning curve. Try Foyr Neo free for 14 days.

Conclusion

A small bathroom floor plan doesn’t have to be a compromise. With a smart layout and the right design tools, you can create a beautiful, functional, and spacious-feeling retreat. Choose the layout that fits your life and use Foyr to start designing your perfect bathroom today.

Frequently Asked Questions (FAQs)

What is the smallest bathroom layout size?

A powder room, or half-bath, is the smallest, requiring as little as 15-20 square feet to fit a toilet and sink. For a full bath with a shower, the minimum is around 30-35 square feet. This is often seen in a 5′ x 6′ or 5′ x 7′ layout.

What is the best pattern for a small bathroom floor?

Large-format tiles (12″ x 24″ or bigger) are excellent for small bathroom plans. They have fewer grout lines, which tricks the eye into seeing a larger, seamless space. Laying rectangular tiles in a diagonal or herringbone pattern can also make the room feel wider and more dynamic.

What is the smallest bathroom allowed by building code?

Building codes focus less on total room size and more on fixture clearances. You must have at least 21 inches of clear space in front of a toilet and sink. A shower’s interior must be at least 900 square inches, which commonly translates to a 30″ x 30″ minimum stall.

Can a bathroom be 4 feet wide?

Yes, a 4-foot-wide (48 inches) bathroom is possible. This width can accommodate a 30-inch-wide tub and toilet, but it will feel very cramped. This narrow footprint is much more common and functional for a simpler powder room.

What is the golden rule for bathroom layouts?

The golden rule is “function first.” This means prioritizing clear, unobstructed walking paths between the main fixtures: the sink, toilet, and shower/tub. Always check your door swing. An in-swinging door should never hit the toilet or block the person standing at the vanity, a common mistake in poor layouts.
